VARIOUS PICTURES FOR WORK-IN-PROGRESS
Kadappa Slab damaged
TECHNICALITY FOR CIVIL REPAIR OF BUILDINGS
Waterproofing External Walls
Often external walls develop wet spots and leakages. Causes are generally the absorptive nature of the plaster, due to age and degradation (or otherwise) as also the absorptive nature of the brick-work or block work behind the plaster. These walls need to be waterproofed effectively. Painting Contractor at times, need to understand new paints available in the market providing waterproof warranty by the OEM manufacturers. Therefore, we suggest, professional Civil repair and Painting Contractor for serious jobs. Most of the times, its been noted that Dead wall tend to face maximum seapages due to high exposure to Rainwater and harsh environments. CSR Consultants provide point specific solution as per the need basis and life expectancy.
If the dampness is not widespread this can be remedied by the following method, using Polymer based chemicals with good quality cement paint. Usually Civil repair Contractors tend to avoid waterproofing leaks if not supervised by professional Engineers.
a) Clean the surface thoroughly to remove all loose material, fungus, old paint etc. and moisten with water.
b) Mix Polymer based chemicals in the water used for preparation of the cement paint. Mix thoroughly to a uniform consistency. For the first coat use 20% Polymer based chemicals by weight of (dry powder) cement paint. For the second coat add only 5%Polymer based chemicals
c) Cure the paint after 24 hours.
d) Follow all the usual steps taken in painting using cement paints (powder form).
If walls are extensively damp and plastering is deteriorating, replastering would be called for. In this case following steps are recommended:
a) Remove the old plaster, remove all the loose particles, and dust etc. and wash with a jet of water.
b) Prepare a mortar mix 1:4 [cement : sand], or as directed by the engineer-in-charge, and admix thoroughly 3% Polymer based chemicals by weight of cement in this mortar. Repair Contractor to ensure, that the ratio mix knowledge is throughly guided to Labour. At times, initial mixing is recommended under direct supervision to standardise the procedure.
c) Provide a first coat plaster using the mortar in item 2 above. Keep its surface rough to receive the second coat. Apply the second coat after the first coat has hardened.
d) Cure as usual as per regular construction practice. 5. External walls may be finished further as per method in Case I
If walls are extensively damp and plastering is deteriorating, re-plastering would be called for. In this case following steps are recommended: NEW WALLS Once the plastering is completed, cured and dried out (to the possible extent) external painting with Polymer based chemicals can be taken up. Civil Contractor at times can avail waterproof painting solutions directly offered by OEM manufacturers.
Please follow the detailed instructions in the literature on Polymer based chemicals for 'Instructions for use'. In case it is desired to finish the exteriors using a cement paint only, then use Polymer based chemicals to improve several qualities of the cement paint coating.
The combination of Polymer based chemicals and good quality cement paint upgrades the ultimate performance of the decorative finish to a plastic-emulsion or acrylic type of finish to provide an effective water proofing & long lasting service.
External pardi at Balcony repaired
Drop pardi at Balcony restored with micro concreting
Terrace external parapet wall surface restored
Are the charges for structural audit report same from all consultants and companies?
Being a service industry, there are no fixed charges for structural audit. However, reputed companies shall be approached as this is the basic report based on which, the entire civil repair restoration works planning is dependent on. The validity of such reports are normally 6 months. These reports define the scope of work for building civil maintenance. So, during the work in progress, escalations can be avoided by restricting unnecessary breaking and redoing. The importance of structural audit being carried by reputed consultants like CSR Consultant and Associates, gives a piece of mind for the managing and repair committees. The charges for residential, commercial, Schools, hospitals, pharmaceuticals, Entertainment, industrial structural audit shall be different, as the elevations, requirements, detailing and approach is totally different for different structures. The only importance factor is to see to it that the consultant is approved licensed structural engineer of BMC (MCGM), TMC, NMMC, KDMC, MBMC, PMC Municipal Corporation.
Micro Concreting work
Column restored and plastered
Bamboo Scaffolding for exterior structural repair
BUILDING POST CRACK FILLING AND PAINTING AT MALAD SITE
Structural Steel corroded
PLUMBING DUCT INACCESSIBLE

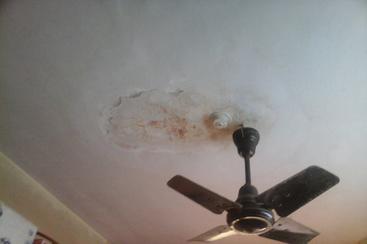

CEILING SEAPAGE SPOT BELOW TERRACE AREA

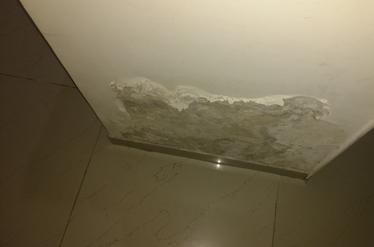

SEAPAGE INSIDE FLAT AT SKIRTING LEVEL
External cracks to structure causing dampness is rectified
Scaling of rust and applying passivator
For Building Repair +91 9323547766
Enquiry :Put your details here...
CSR Consultant & Associates
Balconies enclosed to avoid flying debris from breaking window glasses

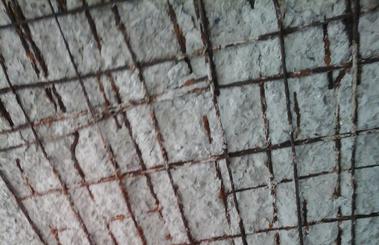

RCC STEEL EXPOSED DUE TO CORROSION
Chajja below areas rusted and scalping of concrete
